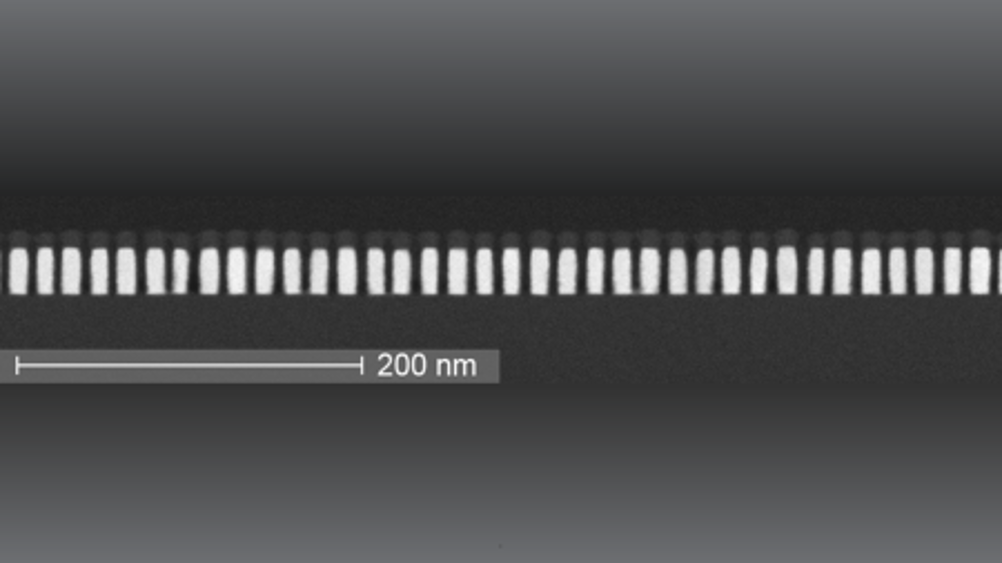

The 16nm pitch metal lines were fabricated using a semi-damascene integration flow that was optimised for manufacturability, making it a cost-effective approach for fabricating the first local interconnect metal layer of the A7 and beyond technology nodes.
Ruthenium (Ru) semi-damascene was originally proposed by imec as an attractive module approach to address the increasing resistance-capacitance (RC) delay concerns associated with Cu dual-damascene when metal pitches scale below 20nm.
Semi-damascene is a two-level metallization module that starts with the direct etch of the first local interconnect metal layer (M0) and is potentially expandable to multiple layers. In 2022, imec experimentally demonstrated direct etched low-resistance Ru lines at 18nm metal pitch and expanded the integration scheme towards a two-metal-level module using fully self-aligned vias (FSAVs).
Imec’s16nm pitch direct etched Ru lines with a record-low average resistance of 656W/µm. According to imec, 40% of the 16nm pitch Ru line structures were shown to meet the resistance target (as predicted based on thin film resistivity), corresponding to 8nm-wide local interconnects. For the 18-22nm pitch range, full-wafer yields of 90% and higher were obtained.
This semi-damascene integration flow relies on a modified EUV-based self-aligned double patterning (SADP) approach – referred to as spacer-is-dielectric (SID) SADP – in combination with direct etch of Ru.
Three key elements from the integration flow are critical to achieving low resistance values and ensuring cost-effective manufacturability. First, the choice of cheap oxide and nitride-based materials for the hard masks, spacers and gap fill. Second, the implementation of a pattern inversion step in combination with an optimized SiO¬2 gap fill. And third, an improved Ru etch step during which the oxidation of the SiN hard mask was minimized to avoid line bridge defectivity.
“Now that industry is picking up Ru direct metal etch, imec is looking ahead to future generations and further optimisations to its semi-damascene flow as well as new integration options,” said Seongho Park, nano-interconnect program director at imec. “imec has shown advances in pillar-based FSAV approaches that are key to expanding the integration towards a two-metal-level scheme.”
In addition to Ru patterning optimisation, imec has also been investigating strategies to mitigate thermally induced morphology changes, according to Park.
“Looking further ahead, imec is experimentally demonstrating an epitaxially grown 25nm thin film of Ru to result in much lower resistive interconnects, approaching for the first time the bulk resistivity of Ru in the thin film regime.”
