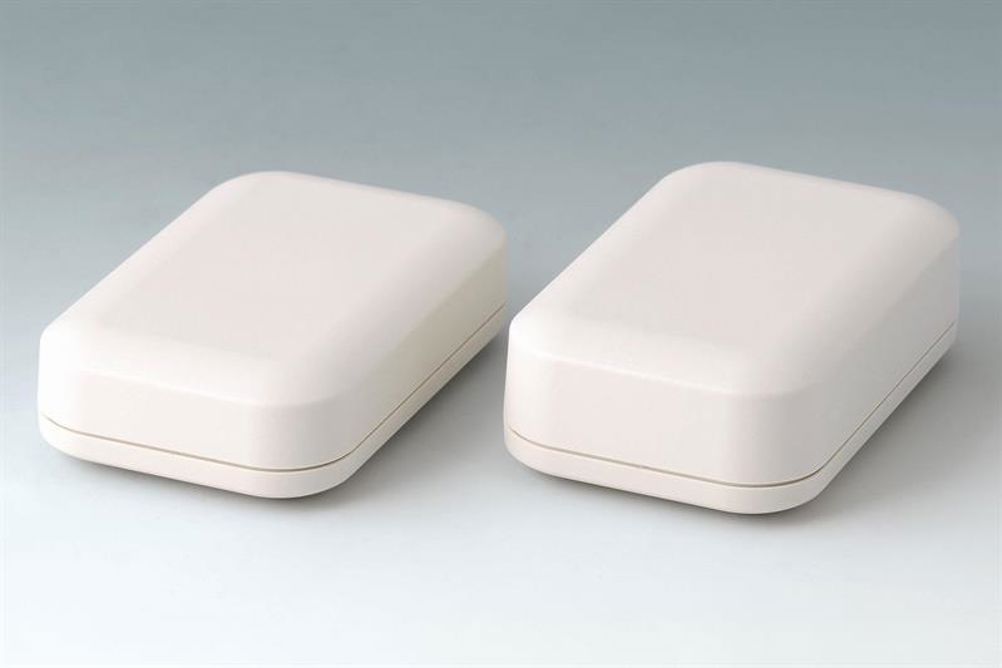

Soft-contoured EVOTEC is ergonomic but tough enough for challenging working environments. Applications include measurement and control, IT, IoT/IIoT, gateways, medical, laboratory and environmental technology.
At 80 x 50 mm, the EVOTEC 80 is the smallest plan size in the range. It has a large flat (non-recessed) top for switches, push buttons and touch displays. Four larger plan sizes are available: 100 (100 x 62 mm), 150 (150 x 93 mm), 200 (200 x 124 mm) and 250 (250 x 155 mm).
EVOTEC is also available with a 12° inclined top (either recessed or non-recessed) that offers a superior viewing angle for desktop use. This sloping top versions are available in two plan sizes: 200 and 250.
All EVOTEC enclosures have screw pillars both in the top and base for installing PCBs. Self-adhesive rubber feet ensure stability on flat surfaces. The enclosures are assembled using Torx assembly screws to prevent tampering (ideal for medical electronics).
EVOTEC is moulded from UV-stable ASA+PC-FR (UL 94 V-0) in off-white (RAL 9002) as standard.
Accessories include an optional IP 65 seal, wall suspension elements, a fastening element for DIN rails, self-tapping screws (PZ1 and Torx T8) and a Torx T8 screwdriver.
OKW can supply EVOTEC fully customised on request. Services include: custom colours; EMC shielding; CNC machining; lacquering; screen/tampo/digital printing or laser marking of legends and logos; installation and assembly of accessories.
