Solid State Disks unveils latest replacement drive - SCSIFlash-Fast

2 mins read

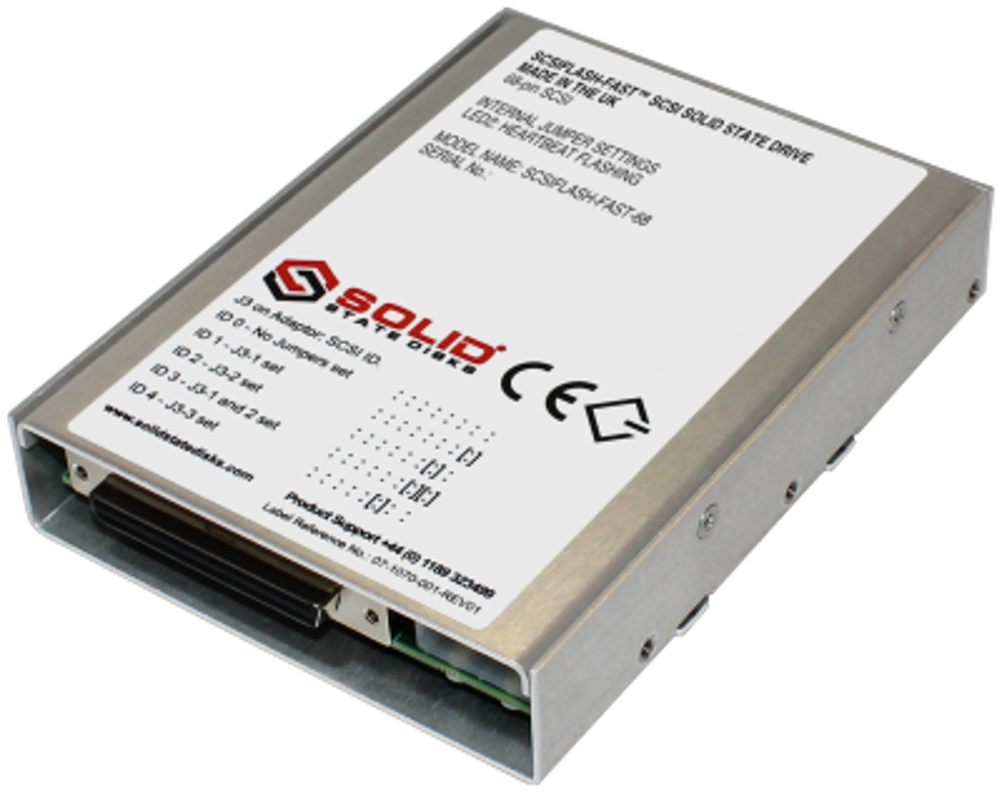

Solid State Disks (SSDL), a manufacturer of solid-state-drives (SSDs) and a value-added reseller (VAR) of Flash and DRAM solutions, has unveiled the SCSIFlash-Fast.

This is a swap-in upgrade/replacement for electromechanical hard disk drives (HDDs) that use the SCSI interface.

Initially available with 68- and 80-pin connectors and write speeds of up to 80MB/s, it uses proven SCSI drive architecture and industrial CFast or M.2 SSD memory (with storage capacities ranging from 2GB to 1TB).

The drive features configurable hardware, allowing the OEMs of (or those responsible for maintaining) legacy systems to replace or upgrade obsolete HDDs that were made in the 1980s, 1990s and early 2000s, and improve system reliability and security.

Commenting James Hilken, SSDL’s Sales & Marketing Director, said, “There are several computer-based systems in use within aerospace, defence, manufacturing, medical, telecommunications and other sectors that were designed decades ago and were fitted with then state-of-the-art SCSI hard disk drives.

“With their moving parts, these long-obsolete drives are increasingly failing. Our SCSIFlash-Fast drive is a highly reliable swap-in replacement for virtually any SCSI hard disk drive that’s more than 20 years old.”

The SCSIFlash-Fast can be configured to order and is able to replicate the exact behaviour of the SCSI HDD it replaces, meaning no modifications need to be made to the host system; which in many cases must not be modified (i.e. its functionality has been certified) or it is simply not cost-effective to do so.

With SSDL’s SCSIFlash-Fast, the SCSI version is set to that of the host system (SASI, SCSI-1, SCSI-2 or Ultra3) and the disk sector size is set to 256, 512, 768, 1024, 2048 or 4096. Other configurations can also be applied, including the preloading of data.

“We have made it possible to remove an old-tech SCSI drive and insert a SCSIFlash-Fast and the host system will not detect the difference,” explained Hilken. “Also, because ours is a solid-state drive it is far more reliable than the drive it replaces, is more secure, draws less power and is quieter. It can also be networked, thanks to an optional Ethernet port, which means it can be accessed remotely for backs ups and system reboots, for example.”

Other features include an ability to automatically detect 16- or 8-bit data operation, as well as single-ended (SE) and low voltage different (LVD) signalling. Also, more than one SCSI address and logical unit number (LUN) can be supported by a single unit, and its microcode is field upgradable via USB.

SCSIFlash-Fast requires a 5VDC supply and will consume just 0.8W (plus whatever power the storage media draws, which will vary depending on memory type). The form factor is an industry-standard 3.5” disk drive (102 x 147 x 25mm (W x L x H)).

SCSIFlash-Fast is available immediately and detailed datasheets of the two launch drives can be viewed and downloaded from the company’s website.
