u-blox ZED-X20P all-band GNSS module unlocks worldwide high-precision navigation

u-blox’s all-band GNSS module, the ZED-X20P, has been designed to deliver global, centimetre-level location precision to the mass market.

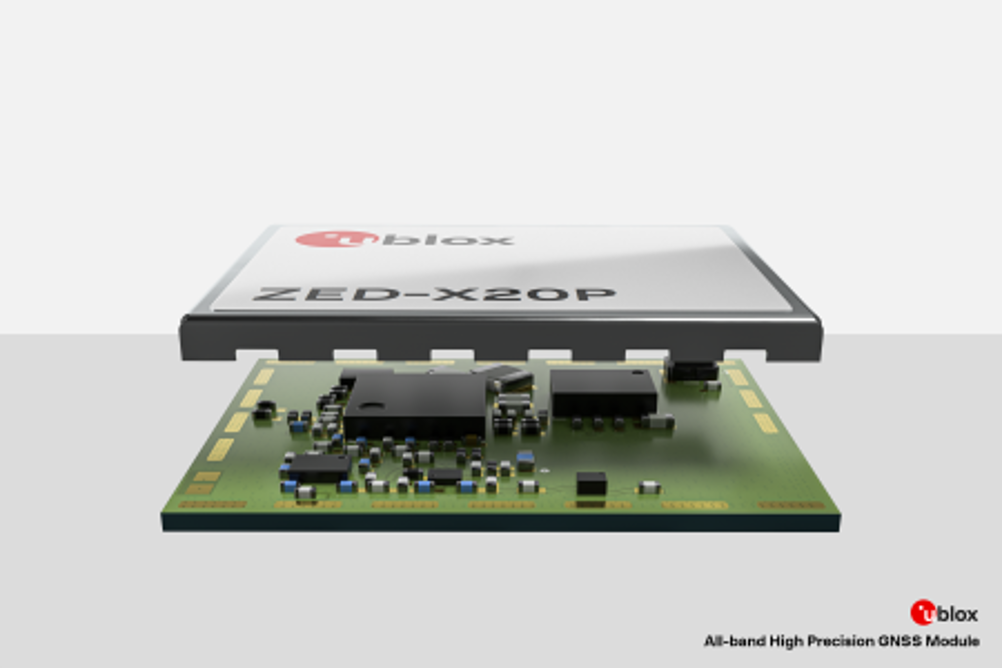

u-blox ZED-X20P all-band GNSS module Credit: u-blox

Significantly cheaper than many other existing devices, the ZED-X20P is both compact and highly energy-efficient and is aimed primarily at the industrial sector, including smart construction, surveying, precision agriculture, rail, maritime, mining, and deformation monitoring. Other potential use cases include unmanned aerial vehicles (UAVs), ground robotics, delivery robots, smart cities, and virtual reality.

The u-blox ZED-X20P is designed for global use at scale and can receive concurrent signals on the L1, L2, L5, and L6 bands from four global GNSS constellations, as well as SBAS, QZSS, and NavIC.

To achieve high-precision positional information, the ZED-X20P is compatible with a range of GNSS correction services, including those delivered via satellite through L-band, with no extra hardware required.

Customers can choose u-blox’s PointPerfect, which offers a full range of PPP-RTK, network RTK, and global PPP correction services for solid performance and scalability to mass-market solutions. The module also offers built-in support for Galileo E6, meaning customers will have access to the free-to-use Galileo High Accuracy Service (HAS), as well as any standard-compliant RTK service, including free and commercial options, for maximum flexibility.

When paired with an all-band antenna such as the u-blox ANN-MB2, the ZED-X20P ensures optimal results, combining ease of use with improved compatibility.

With location data integrity being critical to many of the ZED-X20P’s target applications, the module is designed with end-to-end security.

Security measures include secure boot and signed firmware to prevent tampering and a built-in root of trust for securely storing cryptographic material. The module supports Galileo OSNMA (Open Service Navigation Message Authentication) and uses encrypted correction data to enhance security further. It features all-band frequency diversity, which provides robust protection against jamming. Additionally, all communications between the module and the host are encrypted and authenticated, ensuring secure data transfer.

The ZED-X20P has been designed for ease of integration into new and existing products.

By combining all positioning functionality into a single compact module that incorporates the all-band receiver chip and correction data processing u-blox has eliminated the need for additional receivers or on-host processing. Moreover, by retaining the popular ZED form factor, the module offers a simple upgrade path for existing customers, including those using the ZED-F9P.

With the ZED-X20P the engineering community now has the opportunity to enhance existing products, launch new offerings, or even create new product categories.
