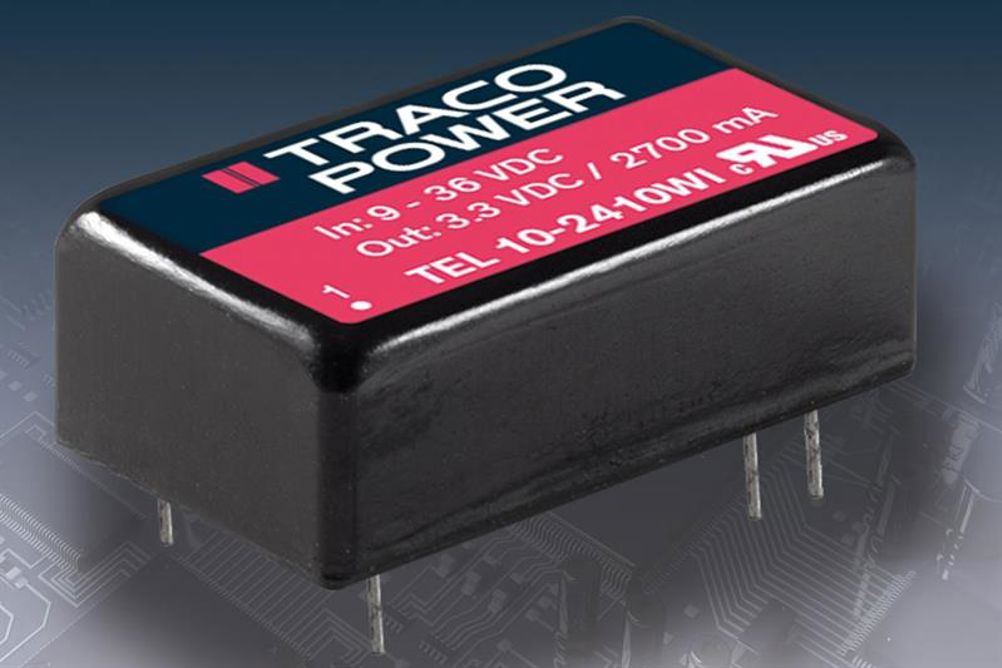

Traco releases TEL10WI series of 10w DC/DC converters

Traco Power has announced the release of the TEL10WI series of 10W DC/DC converters in the DIP-16 package measuring 0.94 x 0.54 x 0.31”, and offering a power density of 3.83W/cm3.

Approved to UL62368-1 & UL60950, the TEL10WI are described as economical solutions for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.

The TEL10WI features a 4:1 input ranging from 9-36 or 18-75Vin and 14 single & dual output models of 3.3, 5.1, 12, 15, 24, ±12 and ±15 VDC. High efficiency of 80-88% helps enable a wide operating temperature range of -40°C to +88°C (derating >70°C). These high-density DC/DC converters are enclosed in a 6-sided shielded metal case with an insulated base plate, an internal filter to meet EN 55032 class A conducted emissions or class B with external components and short circuit / overload protection circuits. All models are backed by TRACO POWER’s 3 year warranty.
