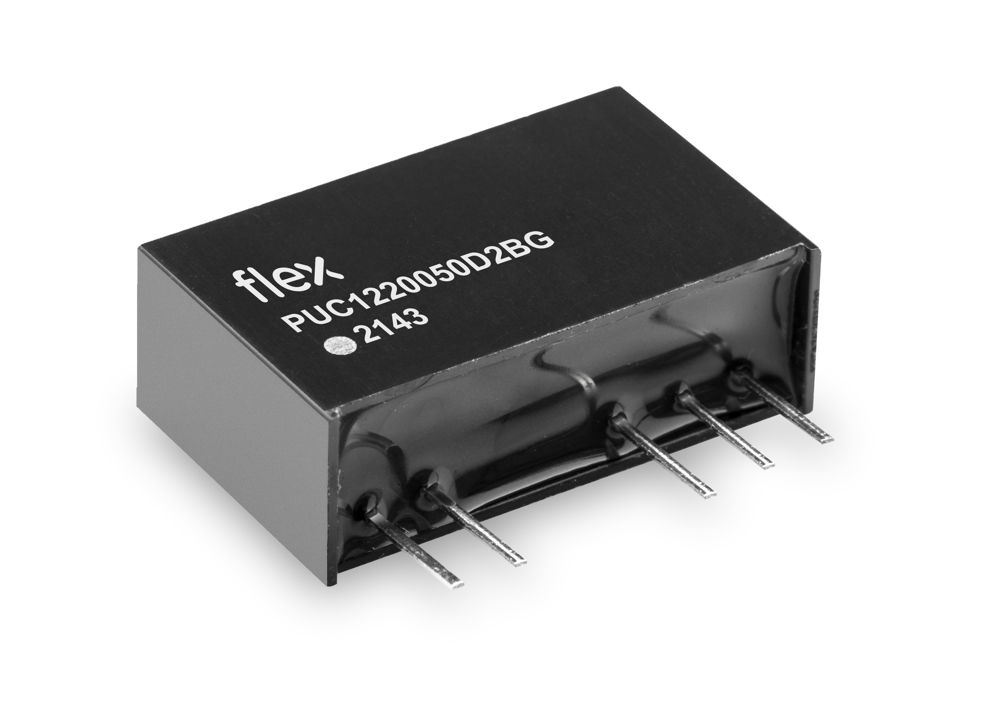

The series includes nominal 12 V, 15 V and 24 V inputs and a selection of dual, unregulated outputs are available, which are suitable for asymmetrical positive and negative gate drive voltages for a wide variety of semiconductor switches, including IGBTs, GaN, silicon and silicon carbide MOSFETS. The PUC-D2BG series features 6 kVDC isolation with reinforced insulation to a 250 VAC working voltage, with safety certification to IEC/EN/UL 62368-1.
The series is intended for isolated ‘high-side’ gate drive power and features low isolation capacitance, typically less than 6 pF, which prevents excessive circulating currents with the high dV/dt seen in typical bridge applications such as motor drives and inverters.
The temperature rating of the products is -40 °C to +100 °C ambient with derating, and full power is available to +85 °C in convection cooled environments. This performance is enabled by a high efficiency design reaching typically 80%. The parts require no minimum load and offer continuous short circuit protection.
Flex Power Modules’ products are backed up by ISO 9001/14001 certification and unrivalled technical support.
