Nexperia expands portfolio offering precise power control with extra system safety

Nexperia has expanded its analogue and logic product portfolio with the introduction of the load switch product family.

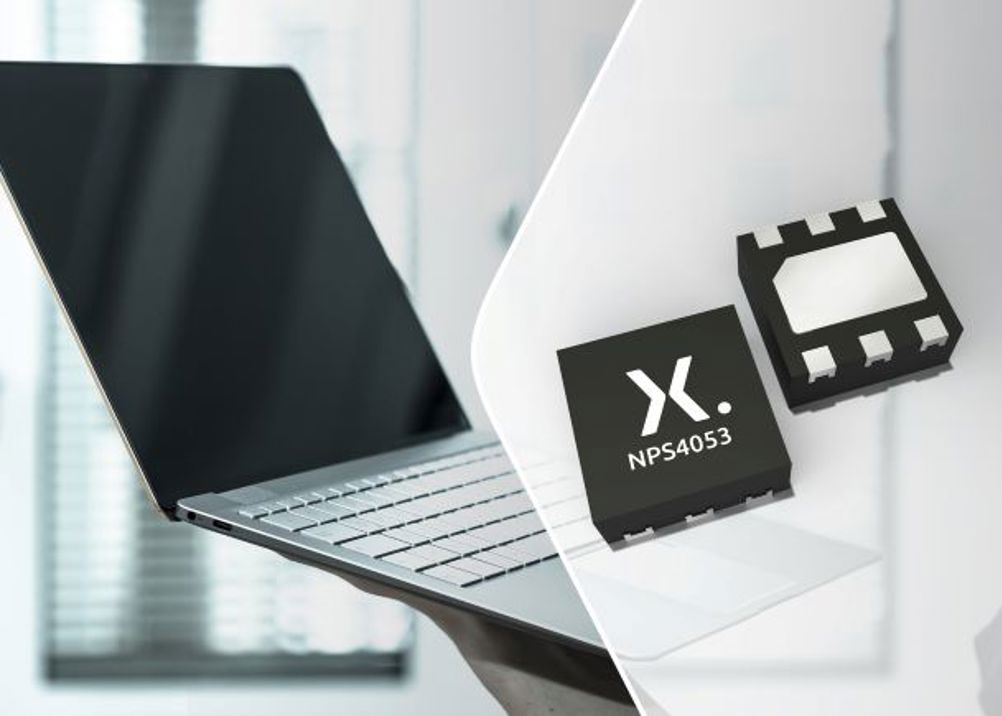

The release includes the NPS4053, a high-density Integrated Circuit (IC) designed to provide a smaller footprint and superior system protection to help increase system reliability and ensure safety.

The device has been optimised for application in portable devices such as notebook computers, desktops, docking stations, and automotive infotainment systems.

Load switches are essential components in the operation of a wide array of modern electronic systems and play a crucial role in managing current/voltage in a controlled manner from source to the load.

In a typical power chain, for example, the NPS4053 is commonly positioned closest to the load for power sequencing and inrush-current control, and shutting off power islands to conserve power, making it especially valuable in battery-operated equipment.

This monolithic solution simplifies circuit design and has an 85% smaller PCB footprint than a comparable network of discrete components.

The NPS4053 operates with an input voltage of 2.5 V-5.5 V and contains a 55 mΩ self-protected MOSFET, which efficiently manages the flow of power to the load. This device includes programmable current-limiting circuitry allowing precise control of the load current over a range of 110 mA to 2.5 A with an accuracy of +6%.

The device also supports “true” reverse current blocking, providing robust end-to-end system protection.

To further enhance system monitoring, the NPS4053 integrates a fault indicator pin that alerts the host controller of a fault event.

Among other certifications, the NPS4053 is UL 62368 recognised and an automotive AEC-Q100 qualified version is also available.
