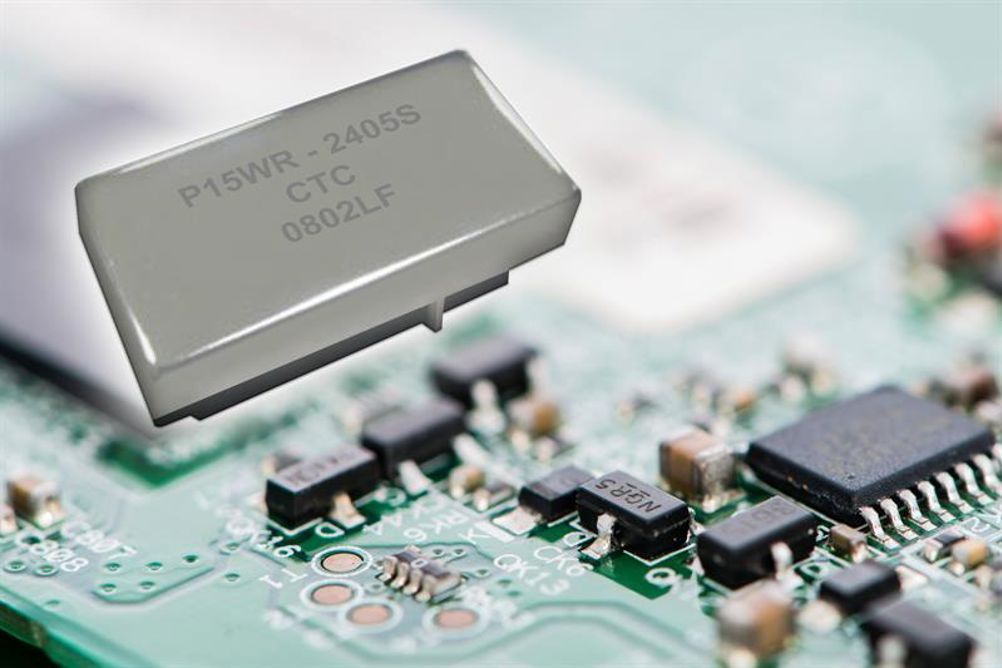

The converters which are encased in nickel plated copper and RoHS compliant are available in two versions: the PC15WR offers a 2:1 wide input voltage range and the PC15WR4 variant provides a 4:1 wide input voltage range. All modules within the series offer isolation voltage of 3000VDC (for one second), continuous short-circuit protection and overload protection.
Other electrical specifications of the series include ripple and noise of 75mV (peak-peak maximum) and output voltage tolerances of 1% maximum. Meeting international safety standards including EMI compliance meeting EN55022, the devices also feature remote on/off control.
Another key feature of the range is that it meets strict no-load power consumption limits of 0.25W maximum to ensure end products will comply with energy-efficiency standards worldwide.
