Latest diagnostic test tools unveiled by Pickering Interfaces

Pickering Interfaces has lowered the cost of ownership of switching systems with the introduction of eBIRST Switching System Test Tools – the company’s latest diagnostic test tools.

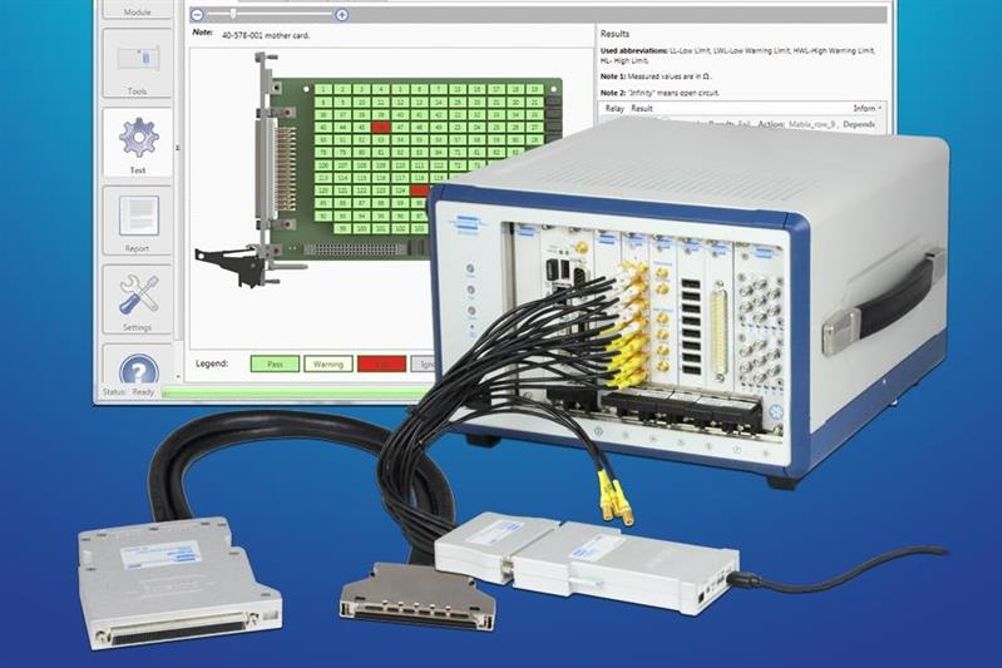

The eBIRST tools, designed specifically for Pickering Interfaces PXI, PCI or LXI (Ethernet) products, are intended to simplify switching system fault finding by quickly testing the system and identifying the faulty relays. Once identified, the tools then display a graphical representation of the switching system's PCB assembly, highlighting the relays that need to be replaced.

The eBIRST tools work by measuring the path resistance between different pins on the switching system connector and controlling the path through the system to allow it to test any of the relays in the system. Systems that use separate input and output connections can be tested by use of two eBIRST tools in a master/slave configuration.

Commenting David Owen, Business Development Manager for Pickering Interfaces, said; "The new eBIRST system test provides external tools that can support any switching system architecture, not just matrices, with 100% relay coverage. These tools can be applied to low or medium power Pickering Interfaces switching systems using any of our primary control interfaces – PXI, PCI or LXI."

The eBIRST tools consist of three different tools that support 200-way LFH, 78-way D and 50-way D connectors and a set of adaptors that allow connection to other connector types. A supplied application program controls the eBIRST tools via a USB2 connection that also provides the tool power and controls the switching system using a Test Definition File to define the test sequence. The tool dimensions allow eBIRST to be used to test PXI, PCI or LXI (Ethernet) controlled switching systems.

The application program, which is free to download from the Pickering Interfaces website, is regularly updated to include support for a growing range of Pickering Interfaces switching products.
