Applications include power systems for Electric Vehicles such as cars, buses, trucks and heavy-duty industrial plant, E-Boats, E-Aviation and industrial motor control.
CISSOID is a developer of multi-phase, high-current power switching modules, motor control systems and software, across a wide range of power requirements.
Key features include:
- 3-phase inverter with anti-parallel diodes.
- Drain-to-source Breakdown Voltage of 1200V.
- Max Continuous Current of 340A/260A at Tc=25°C/90°C.
- Low On Resistance of 3.25 mΩ typical.
- Junction Temperature: -40°C to +175°C.

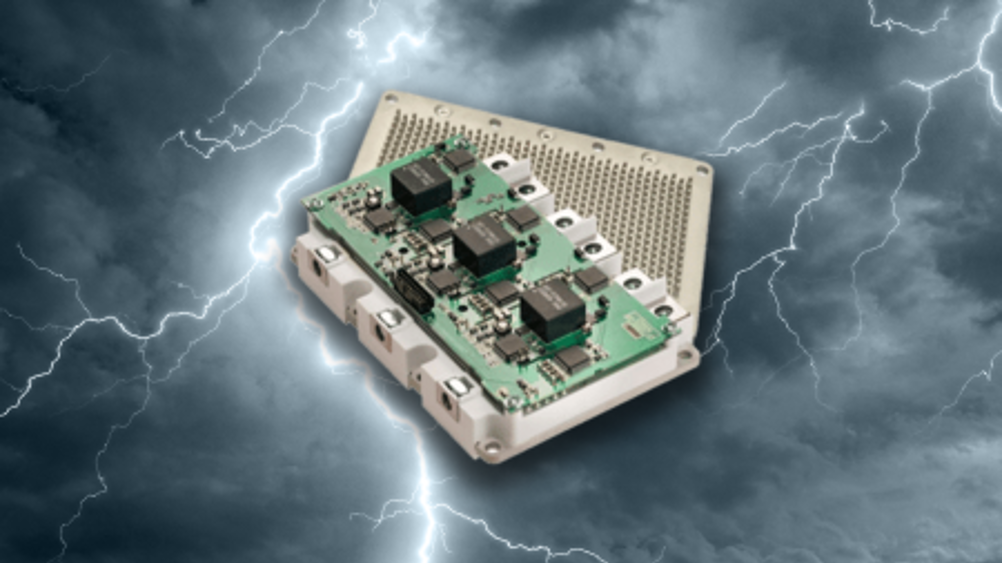

The Cissoid Silicon Carbide (SiC) MOSFET Intelligent Power Module has an open-source design allowing developers to customise the module. Reference designs and bench-top or on-board packaging are also available to shorten new product development lead-times.
The SiC inverter platform is based on a suite of hardware and software products including a SiC Intelligent Power Module, an Inverter Control Module and Functionally Safe E-Motor Control Hardware & Software from Intel Automotive Solutions.
Cissoid can offer:
Modular and open platforms - Footprint-compatible power modules make it easy to vary up and down in power range, according to the needs across vehicle families. Controller solutions can be provided or swapped for in-house developments.
Easy, proven solution - A proven design, tested across a wide range of use cases, up and running within days.
Highly Modifiable - Most parts of the design, from the semiconductor components to the software and the mechanical design, can be adapted to the application’s needs.
Components to Software - Single supplier from individual components over control boards to motor control software and 4 reference designs.
