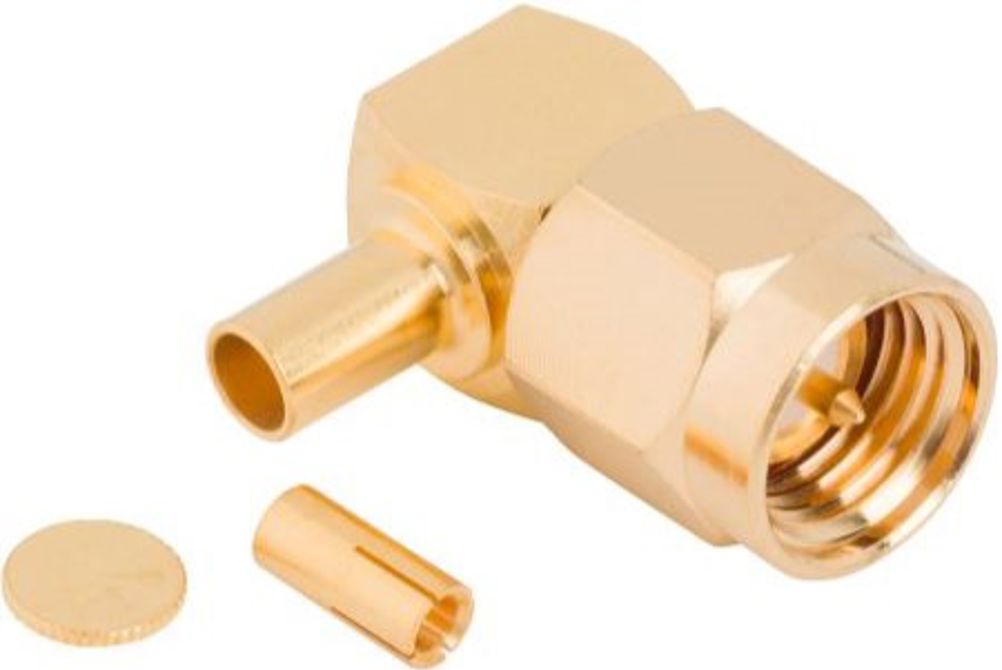

These SMA plugs feature a threaded coupling mechanism ensuring a secure connection even in rigorous applications and these connectors are tested for up to 500 mating cycles, guaranteeing durability and reliability.
The 165°C maximum temperature range ensures consistent levels of performance in harsh conditions where temperature resistance is crucial. Supporting up to 9 GHz, the maximum frequency for many micro-coaxial cable types, these connectors support frequencies required for Wi-Fi 7 applications.
Preconfigured cable lengths and custom cable assemblies are available upon request.
With a durable gold-plated brass body and contact, SMA connectors are engineered to endure corrosion resistance and provide longevity for any usage. In addition, a stainless-steel retaining ring holds the PTFE insulator and contact in place, while a silicone gasket ensures a sealed and secure connection.
When assembling the connector, the centre contact must be soldered and the ferrule crimped with a 0.105” hex crimp. Stripping dimensions for each connector is provided on the product drawings.
With high-frequency capabilities, reliability and quality materials, SMA connectors are suitable for demanding applications such as antennas, telecommunications, and military & aerospace.
These SMA plugs join a wide portfolio of SMA connectors designed as off-the-shelf solutions for all RF design projects.
