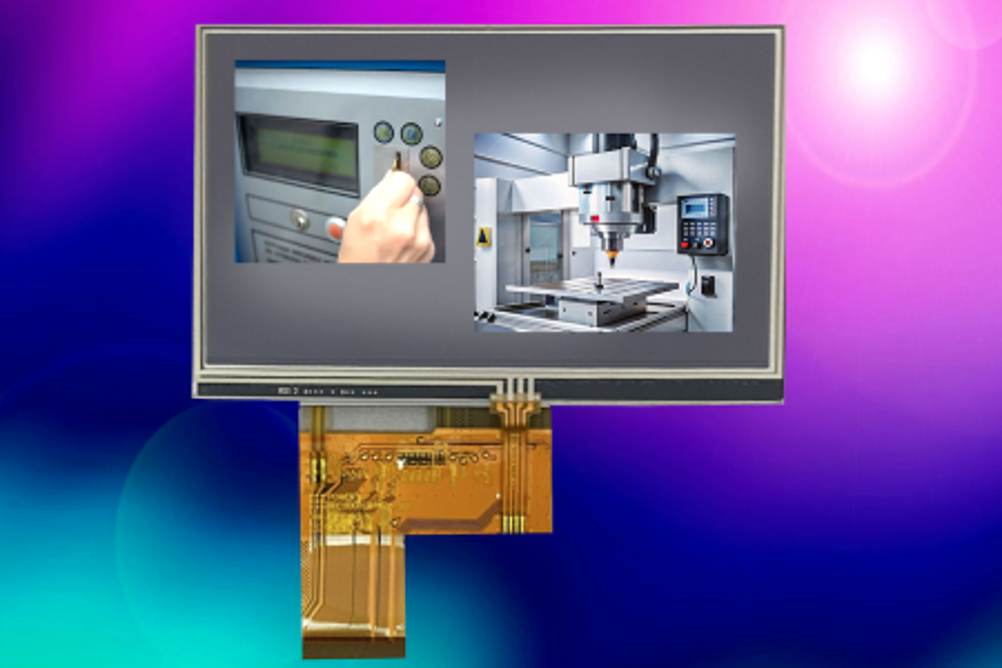

The 4.3-inch IPS model has been designed for a wide range of embedded applications and features resolution of 480(RGB) × 272 dots. The display offers a full viewing angle, transmissive normally black LCD type, and 450 cd/m² brightness, ensuring enhanced image quality and readability across various lighting conditions.
The display’s 24-bit RGB interface and integrated resistive touch panel (RTP) make it a suitable drop-in alternative to the recently discontinued Innolux models.
With an operating temperature range of -20°C to +70°C, and a rated lifetime of 20,000 hours (MTBF) at standard conditions, the module is well-suited to demanding industrial environments. It is powered by the SC7283-G4 driver IC, known for its robust performance and compatibility.
The PH480272T016-ZBB03 offers a compact and reliable solution. Applications will include next-generation access systems or ruggedised industrial interfaces.
