10W DC/DC converter for rugged industrial & railway applications

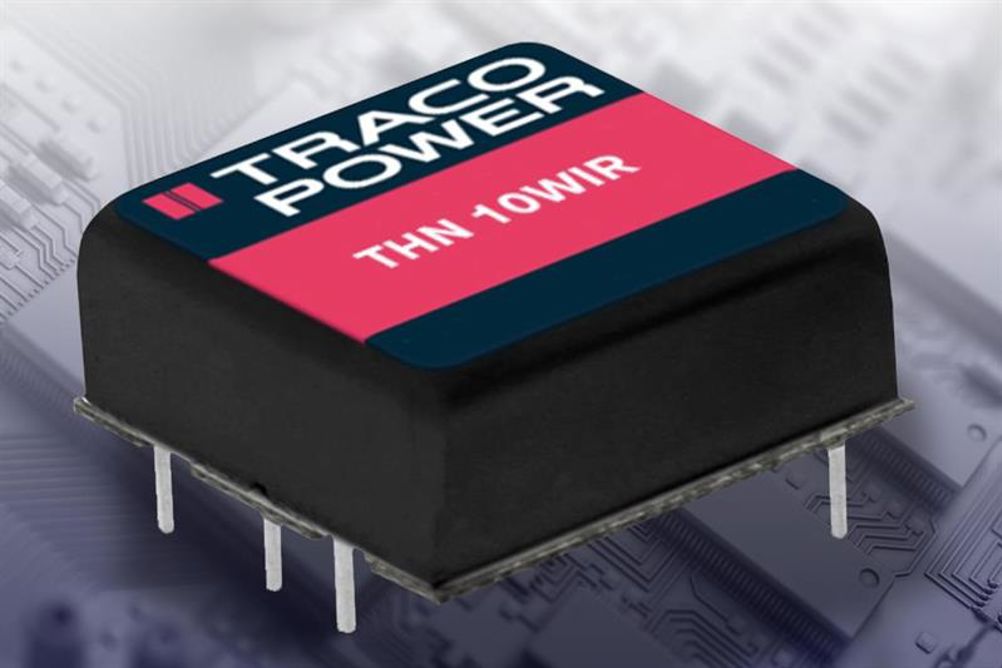

TRACO POWER has unveiled the THN 10 WIR series of 10W high-density DC/DC Converters in the industry standard 1” x 1” footprint and qualified for rugged industrial and railway applications.

These converters have been certified to EN 50155 and EN 61373 standards and are designed and manufactured for high reliability in harsh environments.

The converters have ultra-wide wide 4:1 input ranges of 9-36, 18-78 and 36-160 VDC with single and dual outputs ranging from 3.3-24 VDC. Their design provides high efficiencies up to 90% and enables a full load operating temperature range from -40 to +80°C without derating and increased resistance against electromagnetic interference, shock/vibration and thermal shock.

All models are safety approved to IEC/EN/UL 62368-1 with CB Report and EN 50155 certified qualifying them for harsh environments in industrial, railway and transportation systems and further qualified for fire behaviour of components per EN 45545-2.

Features include: an internal EN 55032 class A input filter; input under-voltage-lockout; short circuit protection; remote On/Off; and output voltage trim. All models offer extreme reliability with an MTBF in excess of 2.3 million hours and are supported by TRACO POWER’S 3 year warranty.
